JCW-30QA M30型模擬量線性位移傳感器（中英文介紹）

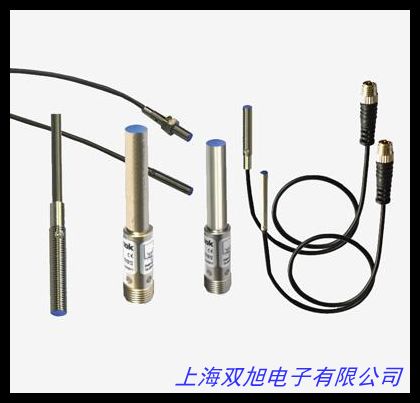

產品概述
JCW-30QA M30是一款高性能非接觸式線性位移檢測裝置，采用電磁感應原理實現位移量的精確測量。該傳感器內置精密信號處理模塊，能夠?qū)C(jī)械位移變化實時轉換為標準模擬量信號輸出，適用于工業自動化場景中對位置、行程或形變的連續監測需求。主體采用M30×1.5不銹鋼螺紋結構，具備便捷安裝與穩定固定特性，防護性能滿足復雜工業環境要求。
核心特點
• 穩定檢測性能：優化設計的電磁檢測系統有效抑制環境干擾，在0~30mm量程范圍內實現連續位置跟蹤，重復測量一致性表現良好
• 環境適應性：全封閉式結構配合耐腐蝕材質，可在-25℃至+85℃寬溫域及存在油污、粉塵的工況中保持可靠運行
• 信號兼容性：支持4-20mA/0-10V雙模式模擬量輸出，兼容主流PLC及控制系統的信號接入需求
• 機械耐久性：特殊處理的聚氨酯傳感探頭可承受軸向±3mm的機械振動，核心部件通過50萬次往復運動測試驗證
典型應用
本產品廣泛應用于注塑機合模定位、液壓缸行程控制、輸送帶糾偏監測、數控機床刀具補償?shù)葓?chǎng)景。在冶金連鑄設備中用于輥縫間距監控，在工程機械領域?qū)崿F(xiàn)液壓桿伸縮量反饋，同時適用于自動化生產線上的精密裝配定位系統。
技術參數
測量范圍：0-30mm（可定制）
線性精度：≤±0.5%FS
工作電壓：DC12-36V寬壓輸入
響應頻率：500Hz
防護等級：IP67（螺紋安裝面）
電氣接口：5芯屏蔽電纜（標準長度2m）
使用提示
建議安裝時確保檢測面軸向?qū)R，預留≥3倍探頭直徑的側向避讓空間。在強電磁干擾環境中推薦使用金屬穿線管進行信號線屏蔽處理，長距離傳輸時需按規范做好信號衰減補償。
JCW-30QA M30 Analog Linear Displacement Sensor (Bilingual Introduction)
Product Overview
The JCW-30QA M30 is a high-performance non-contact linear displacement detection device utilizing electromagnetic induction for precise displacement measurement. Equipped with an integrated signal processing module, it converts mechanical displacement into continuous analog output signals (4-20mA/0-10V), ideal for continuous position monitoring in industrial automation systems. Featuring an M30×1.5 stainless steel threaded housing, it ensures secure installation and reliable operation in challenging industrial environments.
Key Features
• Stable Detection: Advanced electromagnetic design minimizes environmental interference, delivering consistent repeatability across 0-30mm measuring range
• Environmental Resistance: Hermetic construction with corrosion-resistant materials ensures stable operation from -25℃ to +85℃ in oily/dusty conditions
• Signal Flexibility: Dual analog output modes compatible with most PLCs and control systems
• Mechanical Robustness: Polyurethane sensing probe withstands ±3mm axial vibration, validated through 500,000-cycle endurance testing
Typical Applications
Precision positioning in injection molding machines, stroke control for hydraulic cylinders, conveyor belt alignment monitoring, and CNC machine tool compensation. Widely implemented in metallurgical roll gap measurement, construction machinery cylinder feedback, and automated assembly line positioning systems.
Technical Parameters
Measuring range: 0-30mm (customizable)
Linearity: ≤±0.5% FS
Supply voltage: DC12-36V
Response frequency: 500Hz
Ingress protection: IP67 (mounting surface)
Connection: 5-core shielded cable (2m standard)
Installation Notes
Maintain axial alignment between sensor and target surface. Allow ≥3x probe diameter lateral clearance. Recommend metallic conduit for EMI protection and signal compensation for long-distance transmission.
